Autocomplete

Autocomplete helps users find and select values by suggesting options as they type.

Anatomy

Desktop

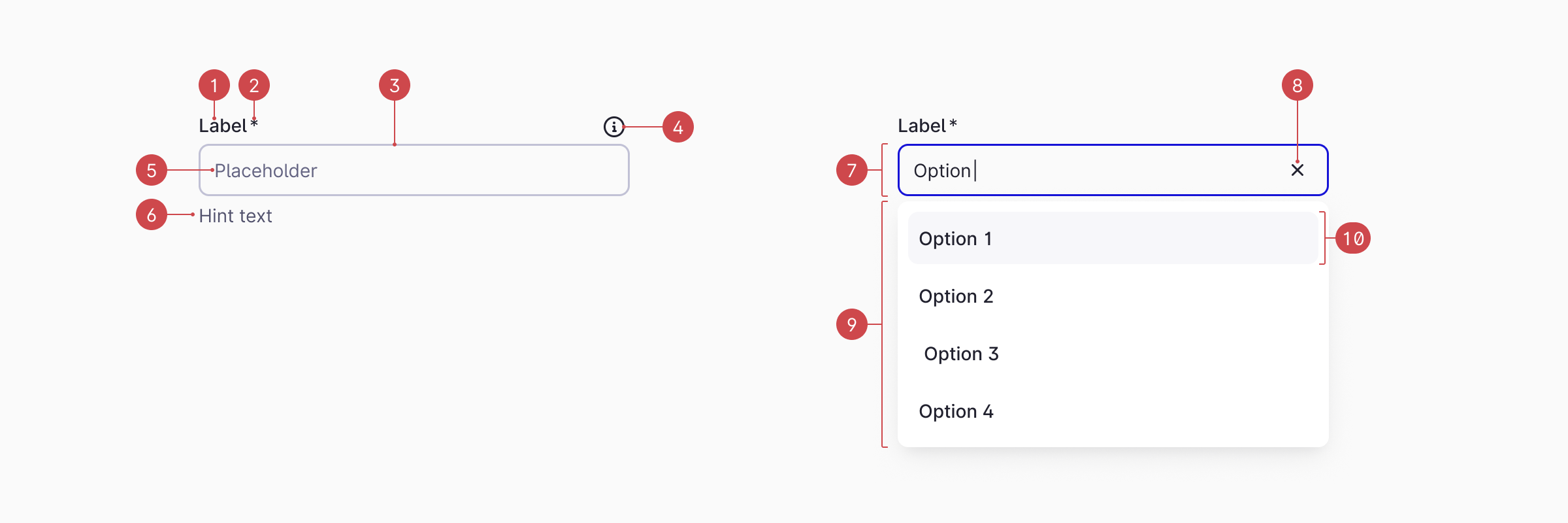

Style / Anatomy / Desktop

Item

Name

Description

Component

Optional?

1

Label

Indicates what content the user needs to enter in the field.





2

Required Marker

Shows that entering data is mandatory to proceed.



Yes

3

Field

The container where the user’s selection is displayed.

Fields



4

Help Icon

Provides extra, non-essential information to guide the user.

Bare Icon Button
Tooltip

Yes

5

Placeholder

Gives examples of the content format.



Yes

6

Hint Text

Offers guidance to help users input the correct data.



Yes

7

Searchable Field

When the field is active, this allows users to search and filter options within the list.

Bare Icon Button



8

Clear Button

Resets the selection by removing the selected options.

Bare Icon Button



9

Dropdown

The container that displays the list of selectable options.





10

Dropdown Item

A single selectable suggestion/option.







Mobile

On mobile, the Active state adapts to display its content inside a Drawer.

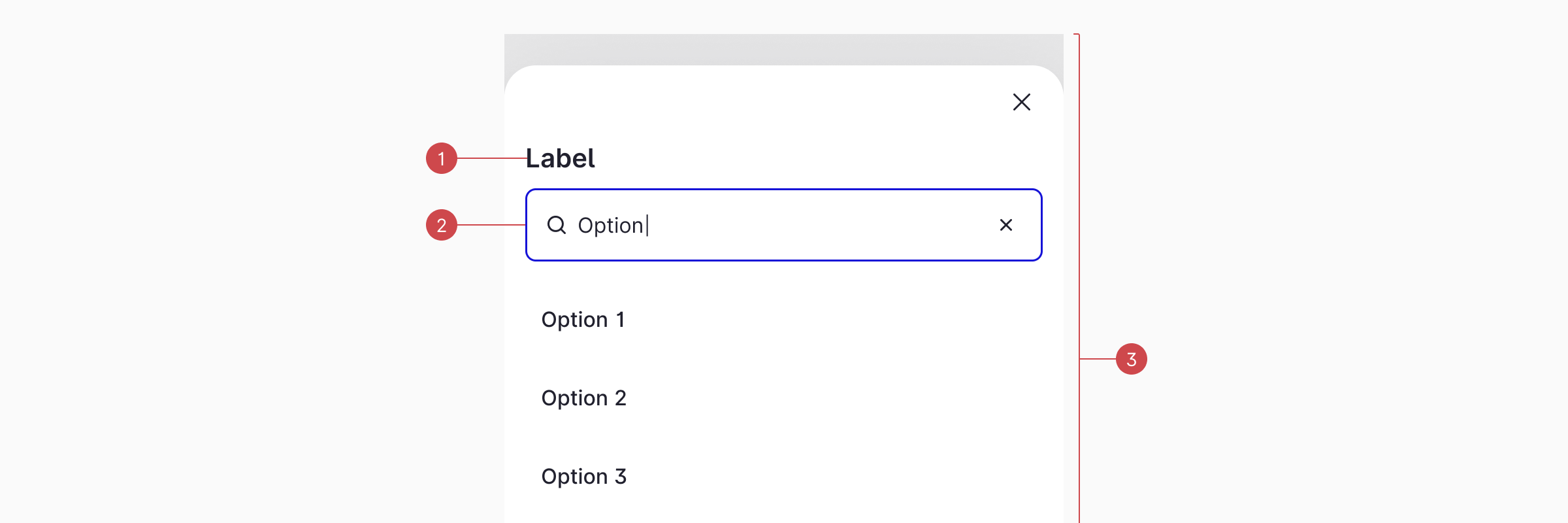

Style / Anatomy / Mobile

Item

Name

Description

Component

Optional?

1

Label

The field label is replicated in the mobile view to maintain context while selecting an option.





2

Search Input

Allows users to search and filter options within the list, similar to the desktop variant.

Search Input



3

Drawer

It holds the dropdown content.

Drawer




Specifications and properties

Spacing

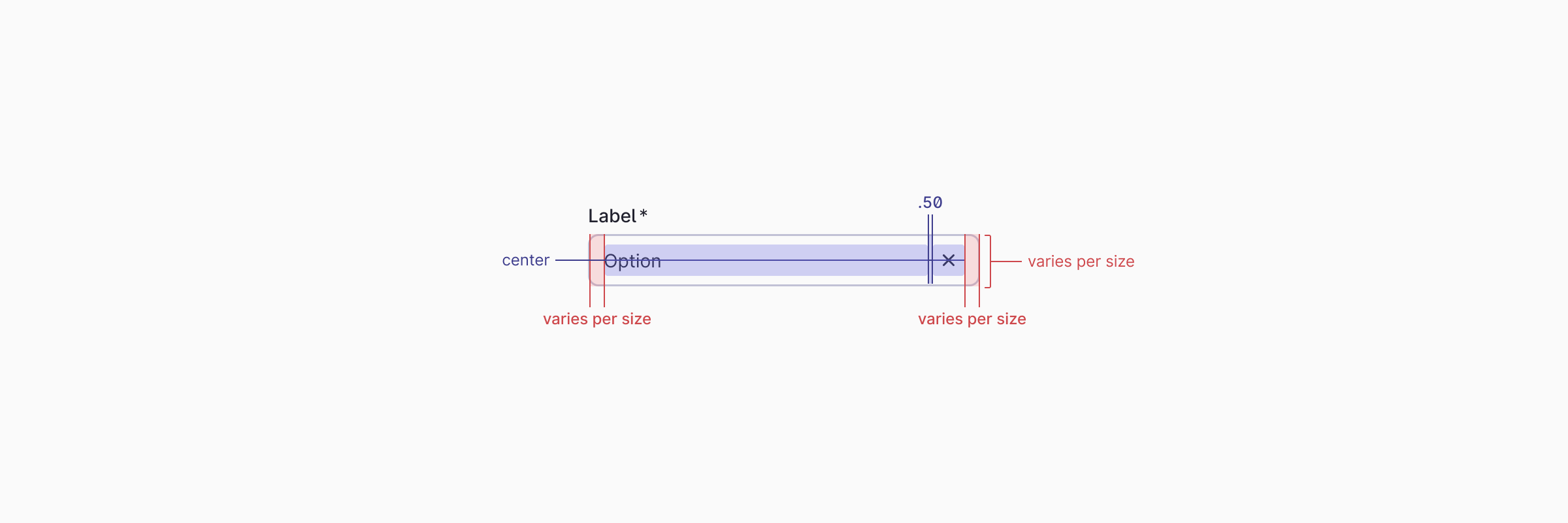

Style / Sizing and spacing

Property

Value

Token

align-items

center



gap

4px

spacing.50



Dropdown

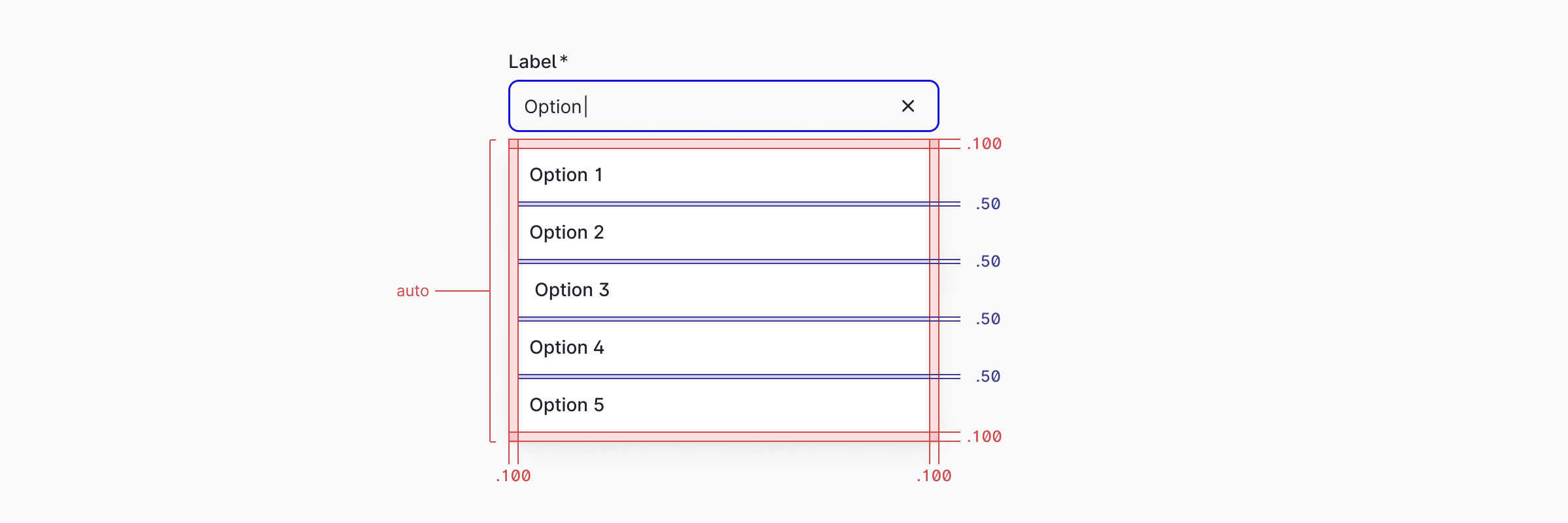

Style / Sizing and spacing / Dropdown / Desktop

Property

Value

Token

min-height

500px (default)



padding

8px

spacing.100

gap

4px

spacing.50

Style / Anatomy / Mobile

Element

Property

Value

Token

Dropdown

padding-left

padding-right

16px

spacing.200

Label

margin-bottom

8px

spacing.100

Field

margin-bottom

16px

spacing.200
